Description

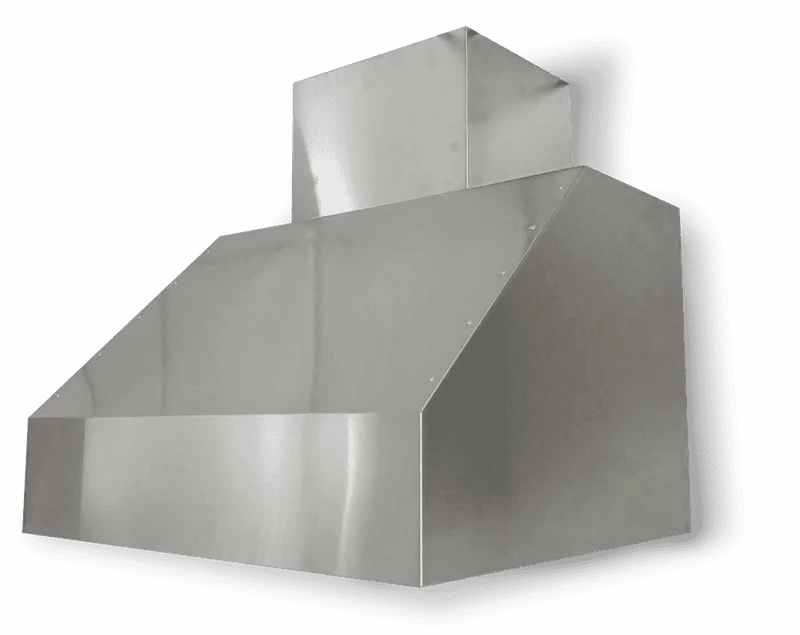

TRADE-WIND 7200 Series Style Outdoor – 36″ 7236

Please call  (800)604-1380 Ext#2 before placing your order to confirm the item’s availability.

Product Features
Lighting

Recessed controls and LED lights. Buttons and light glare hidden from the front. Two LED lights brighten cooking area (three on 48”,60”, and four on 72” model).

Enduring Quality

Commercial grade stainless steel (#304 grade) and galvanized steel construction. CFM and sound tested by Energy Systems Laboratory at Texas A&M University.

Quiet Operation

Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration. 3-speed motor control reduces blower and air movement sound.

Built for Performance

Double bank of baffle filters allows for the largest active capture area in
outdoor hoods. Generously proportioned 32” depth of hood bottom, 15′′ depth at top, 24′′ high, provides an exceptional capture area.

Ease of Use

Cool touch knarled knobs for easy control.

Installation

All 24” bodied hoods easily convert from vertical discharge to horizontal at job site

SPECIFICATIONS:Models:

36”, 42”, 48”, 54”, 60”, 66” & 72”

CFM:

Two or four internal sealed motors deliver 1200 CFM or 2300 CFM
Optional in-line blowers deliver 1266 CFM

Material:

Heavy gauge commercial stainless steel (#304 grade, 22-gauge)
Dimmable 50 watt halogen lights

Filters:

Four 12” by 14” baffle filters improve performance (six or eight filters on larger models)
Design of the stainless steel commercial baffle filters adds a professional appearance and improved performance

Installation

Generously proportioned 32” depth at bottom, 15″ depth at top, 24″ high hood provides an exceptional capture area

SPEC SHEETINSTALLATION GUIDE
